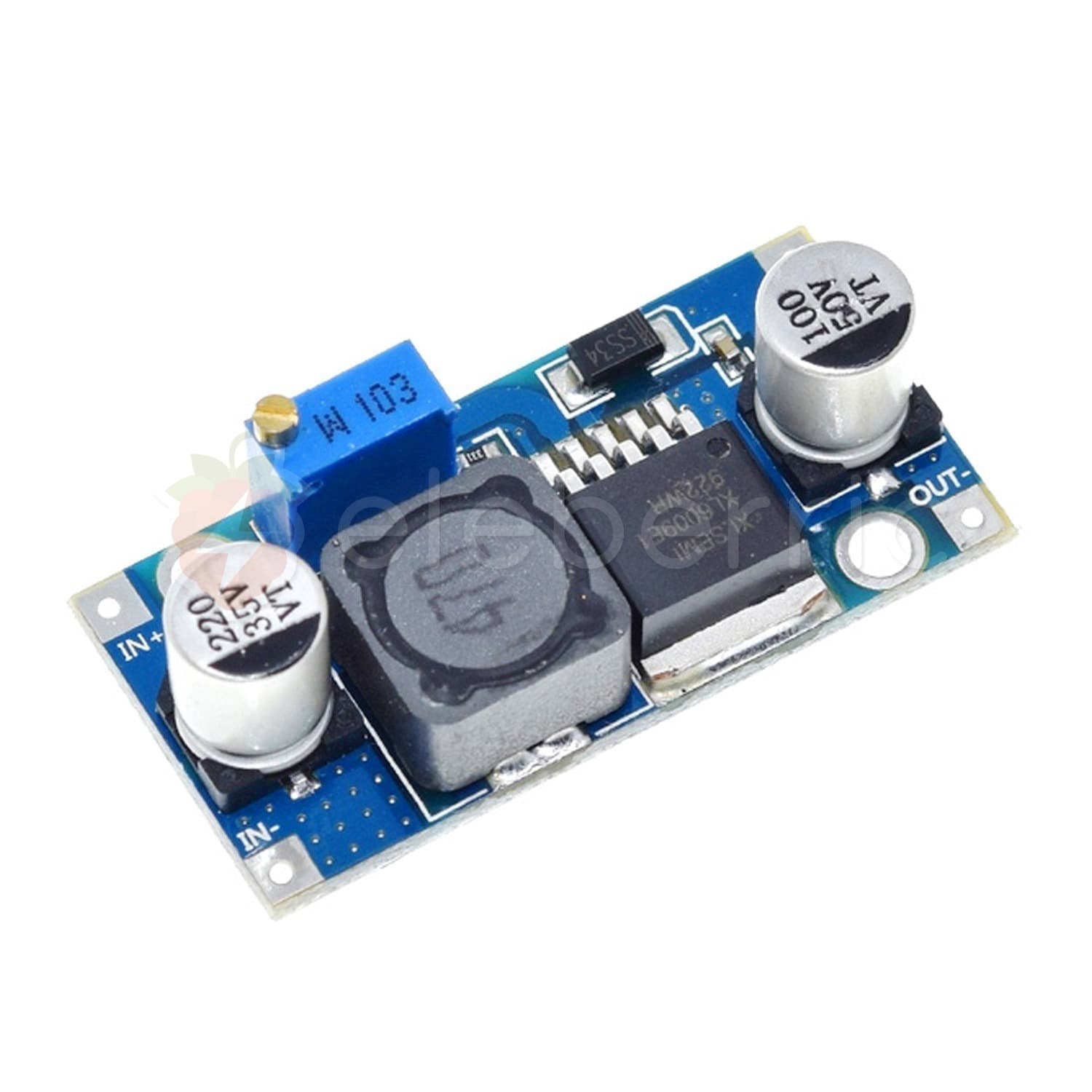

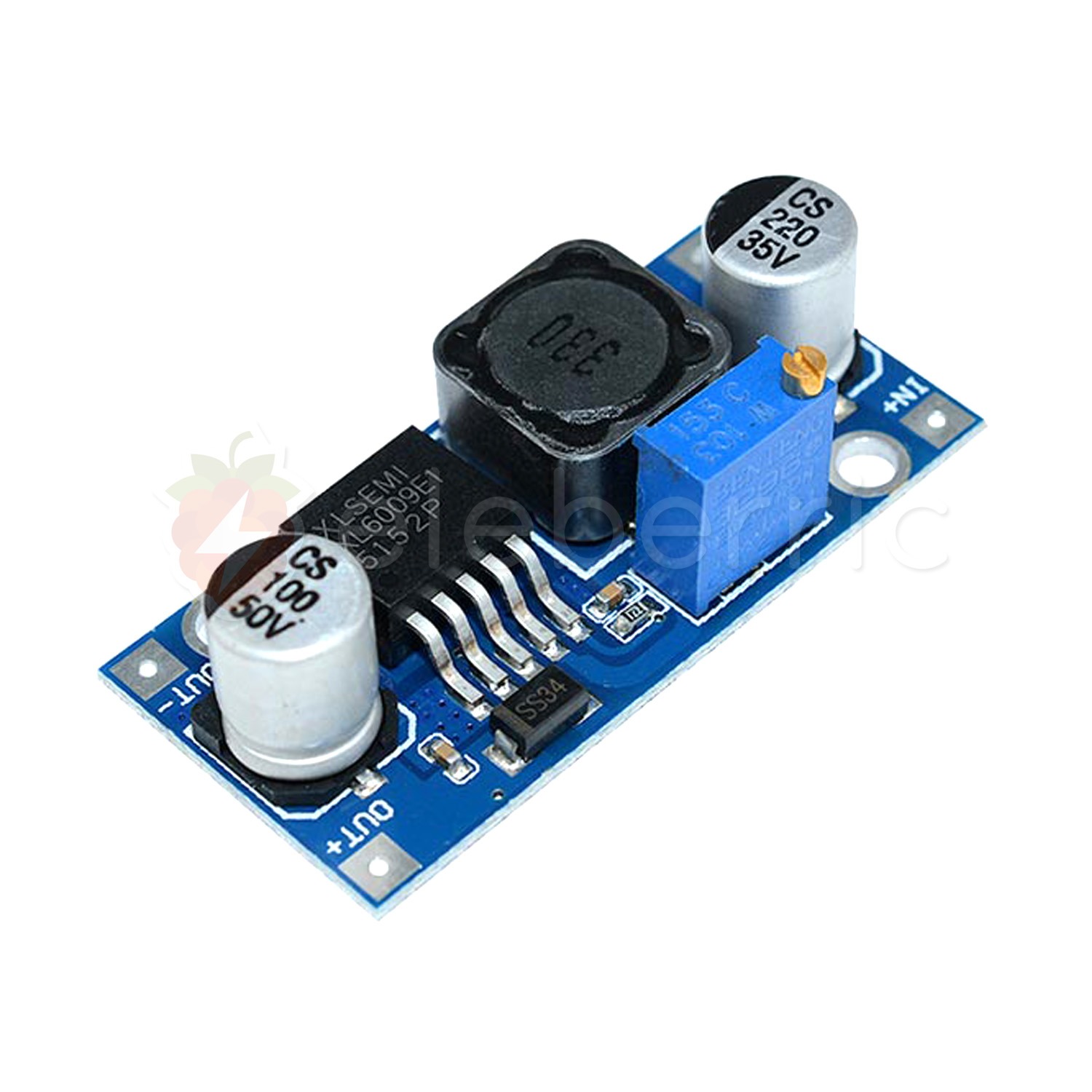

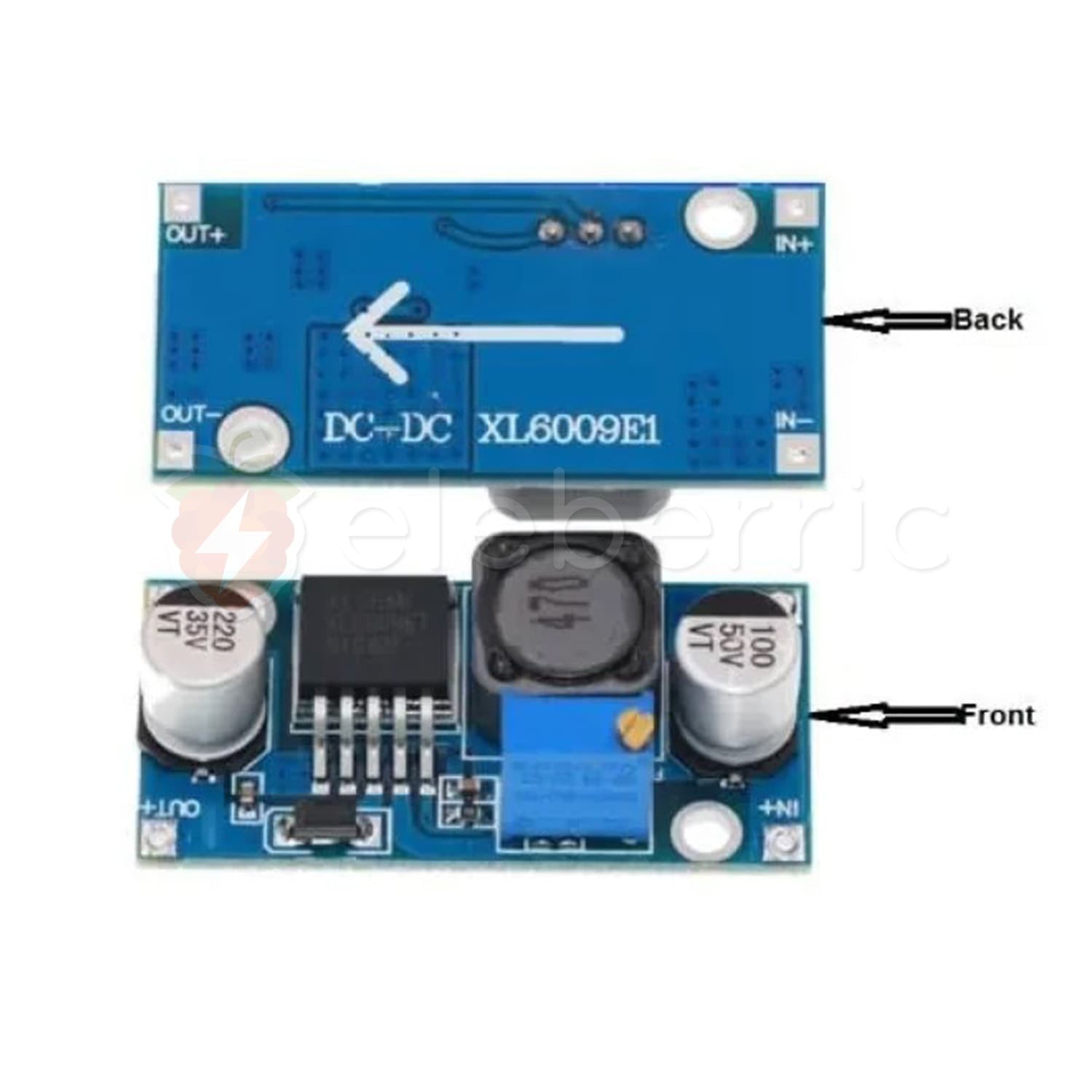

XL6009 Step Up Boost Converter Module

The XL6009 Step Up Boost Converter Module is a non-isolated DC-DC voltage converter that delivers adjustable output voltage with high efficiency. Utilizing the second generation of high-frequency switching technology, the XL6009E1 core chip outperforms the older LM2577 technology, providing superior performance at a lower cost. This module features 4A high-efficiency MOSFET switches, achieving conversion efficiency of up to 94%. With a high switching frequency of 400kHz, it allows the use of small-capacity filter capacitors, resulting in minimal ripple and excellent performance. Ideal for DIY electronics, battery-powered devices, and portable power supplies, the XL6009 module ensures stable and reliable voltage conversion.

Key Features:

• Wide Input Voltage Range: Supports input voltages from 3V to 32V, suitable for various power sources including batteries and adapters.
• Adjustable Output Voltage: Easily adjustable output voltage from 5V to 35V using the onboard potentiometer.
• High Efficiency: Up to 94% efficiency ensures minimal power loss and efficient energy conversion.
• High Output Current: Capable of delivering up to 4A of output current, suitable for powering high-demand devices.

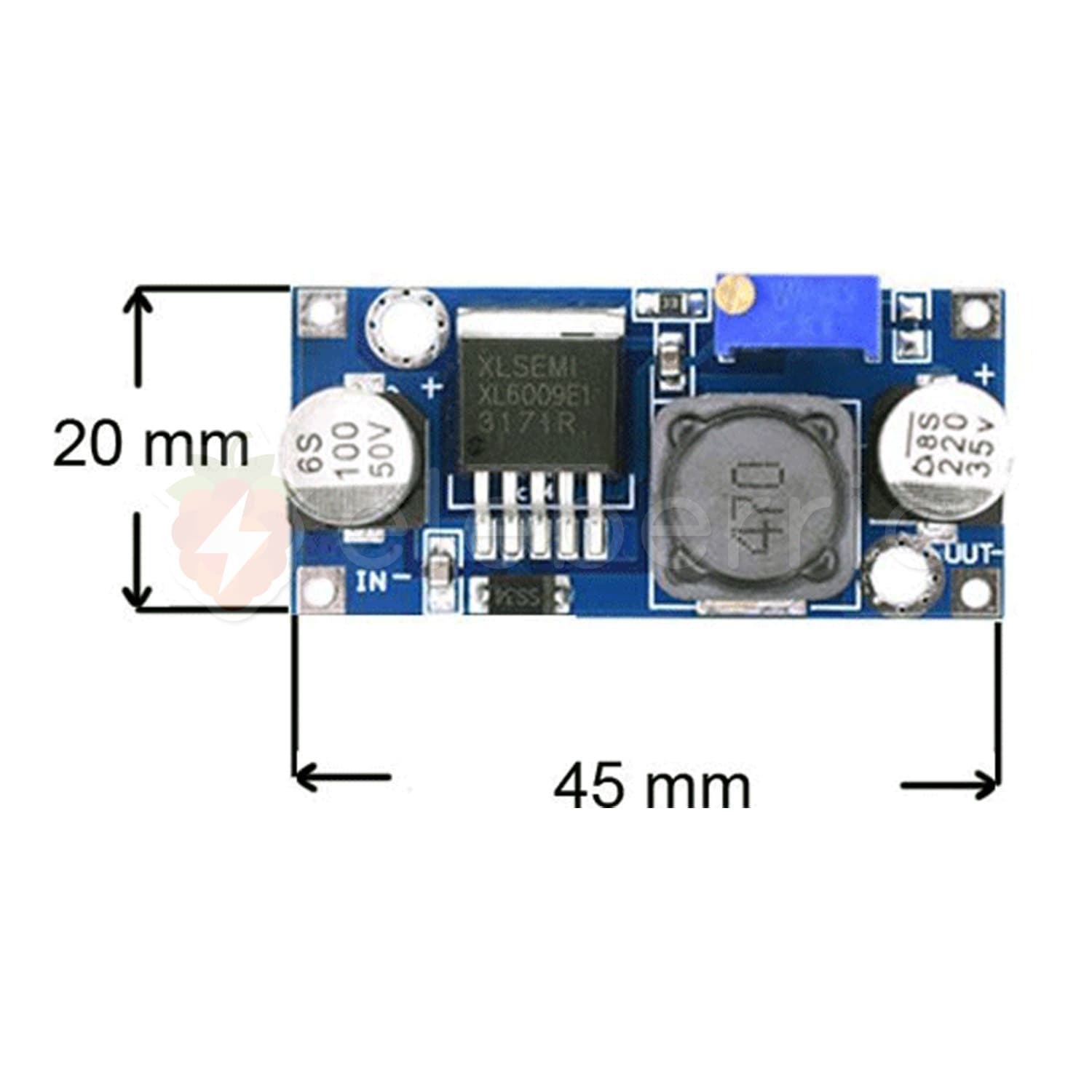

• Compact Design: Small and lightweight, making it easy to integrate into various electronic projects and devices.
• High Switching Frequency: 400kHz switching frequency reduces output ripple and improves overall performance.
• Built-in Protections: Features overcurrent, overvoltage, and thermal protection to ensure safe and reliable operation.

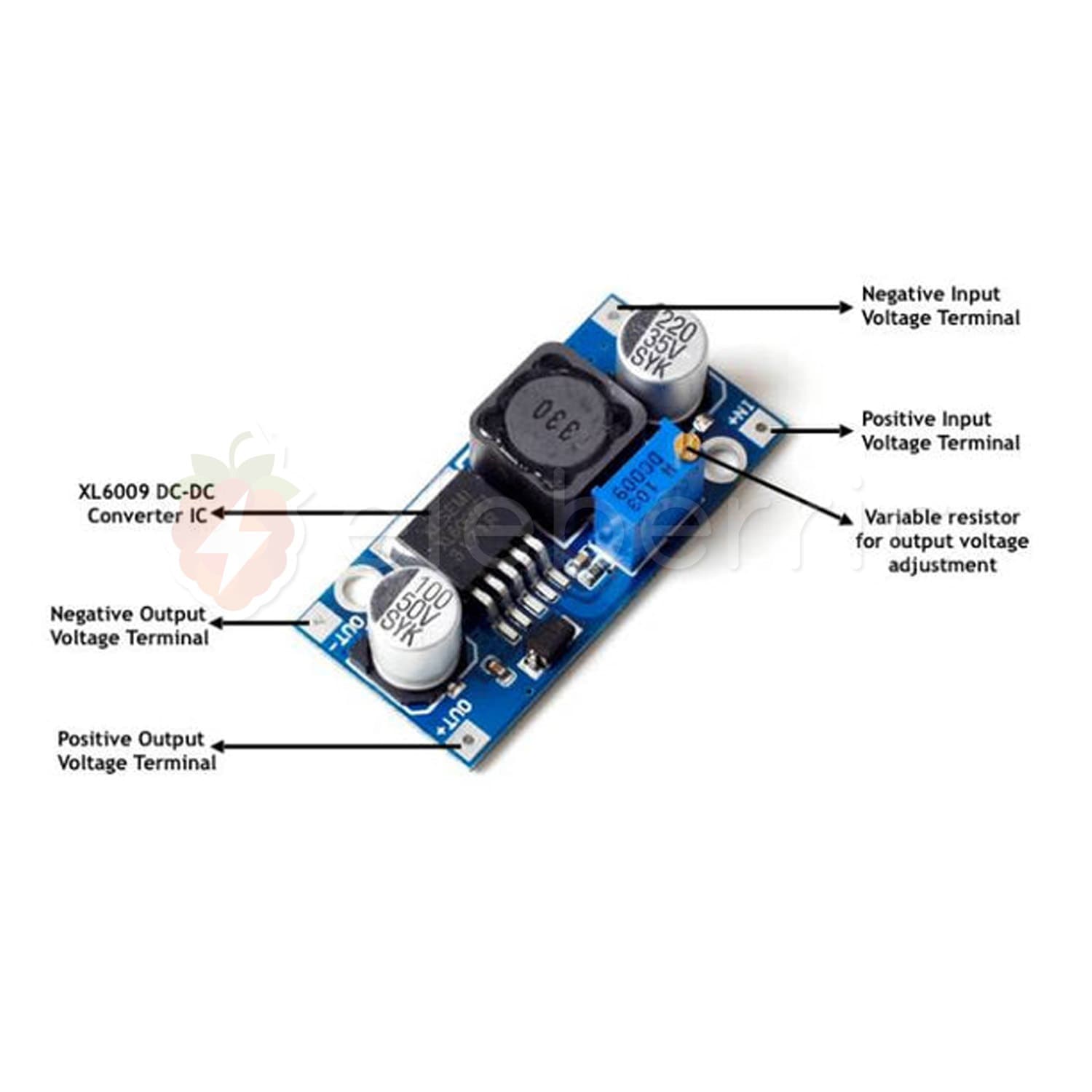

• Easy Installation: Clear input and output connections make it user-friendly for both beginners and experienced users.
• Versatile Applications: Ideal for DIY electronics, portable power supplies, battery-powered projects, and any application requiring a stable boost in voltage.
• Durable Construction: Designed for long-term reliability with quality components and robust construction.

Applications

• DIY Electronics Projects: Ideal for boosting voltage in small electronics and robotics projects.
• Portable Power Systems: Suitable for creating custom portable charging solutions and power banks.
• Robotics and Automation: Provides reliable voltage boosts for motors, sensors, and actuators.
• LED Projects: Perfect for driving high-brightness LED strips and panels requiring step-up voltage conversion.
• Power Supply Modules: A reliable choice for building custom step-up converters in DIY and industrial power setups.
• Prototyping Applications: A must-have for prototyping circuits where voltage conversion flexibility is essential.

The XL6009 Step-Up Boost Converter Module offers a reliable, energy-efficient, and adaptable solution for all your voltage conversion needs, whether you’re working on DIY electronics, robotics, or advanced automation projects.
