Bluetooth RF Transceiver Module HC-05

Name: Bluetooth RF Transceiver Module HC-05
Brand: Eleberric
SKU: ELEB-BLE-HC-05-MODULE
Price: 880 LKR
Availability: InStock

(12 pre-tested customer reviews)

රු 880.00රු 1,100.00

The Bluetooth RF Transceiver Module HC-05 provides seamless wireless communication between microcontrollers and Bluetooth-enabled devices. With its compact size and simple configur...

In Stock (60 units pre-tested and ready)

Guaranteed replacement warranty on fault elements

Pre-tested wiring test clearance passed

Detailed Description & Connections

The Bluetooth RF Transceiver Module HC-05 is a popular and versatile Bluetooth communication module, perfect for integrating wireless capabilities into electronics projects. It allows for easy bidirectional serial communication between microcontrollers (such as Arduino) and Bluetooth-enabled devices like smartphones, tablets, or PCs. Widely used in applications such as robotics, home automation, and IoT, the HC-05 module offers flexibility and ease of use, making it a go-to choice for hobbyists, students, and professionals.

Key Features:

Bidirectional Communication: Supports Master, Slave, or Master/Slave modes for versatile wireless data transfer.
Easy Configuration: AT commands for setting baud rate, device name, and PIN code.
Low Power Consumption: Ideal for battery-powered projects with energy efficiency needs.
Compact Design: Small form factor ensures seamless integration in space-constrained projects.
Long Range: Reliable communication up to 10 meters in an open environment.
Wide Application: Suitable for IoT, sensor networks, remote control, and wireless data transfer.
Cost-Effective: Affordable wireless solution for various electronics projects.

The HC-05 Bluetooth module is ideal for applications requiring reliable wireless communication and is highly favored for its ease of use, flexibility, and low power consumption.

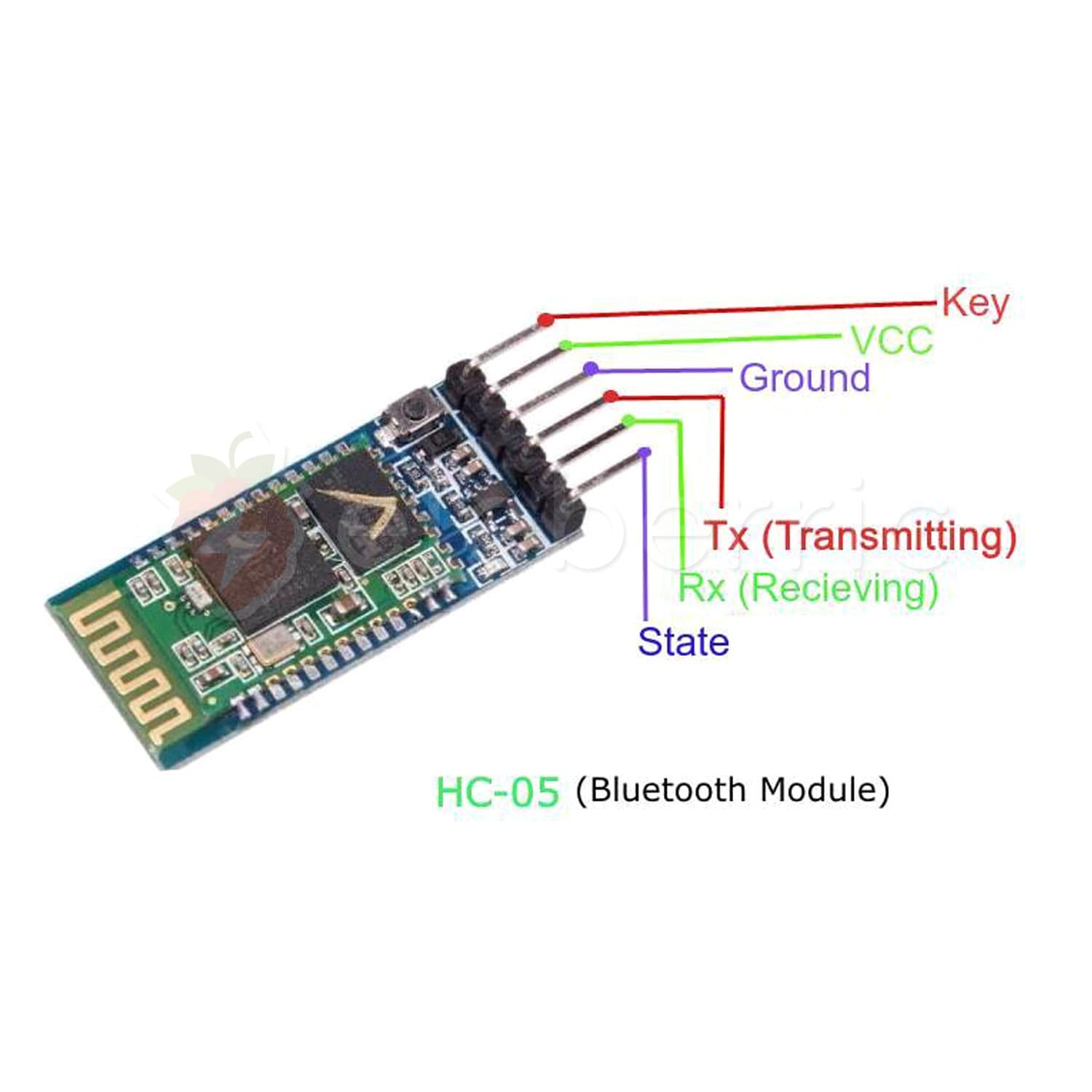

Component Gallery & Wiring Diagrams

4 Diagrams Available

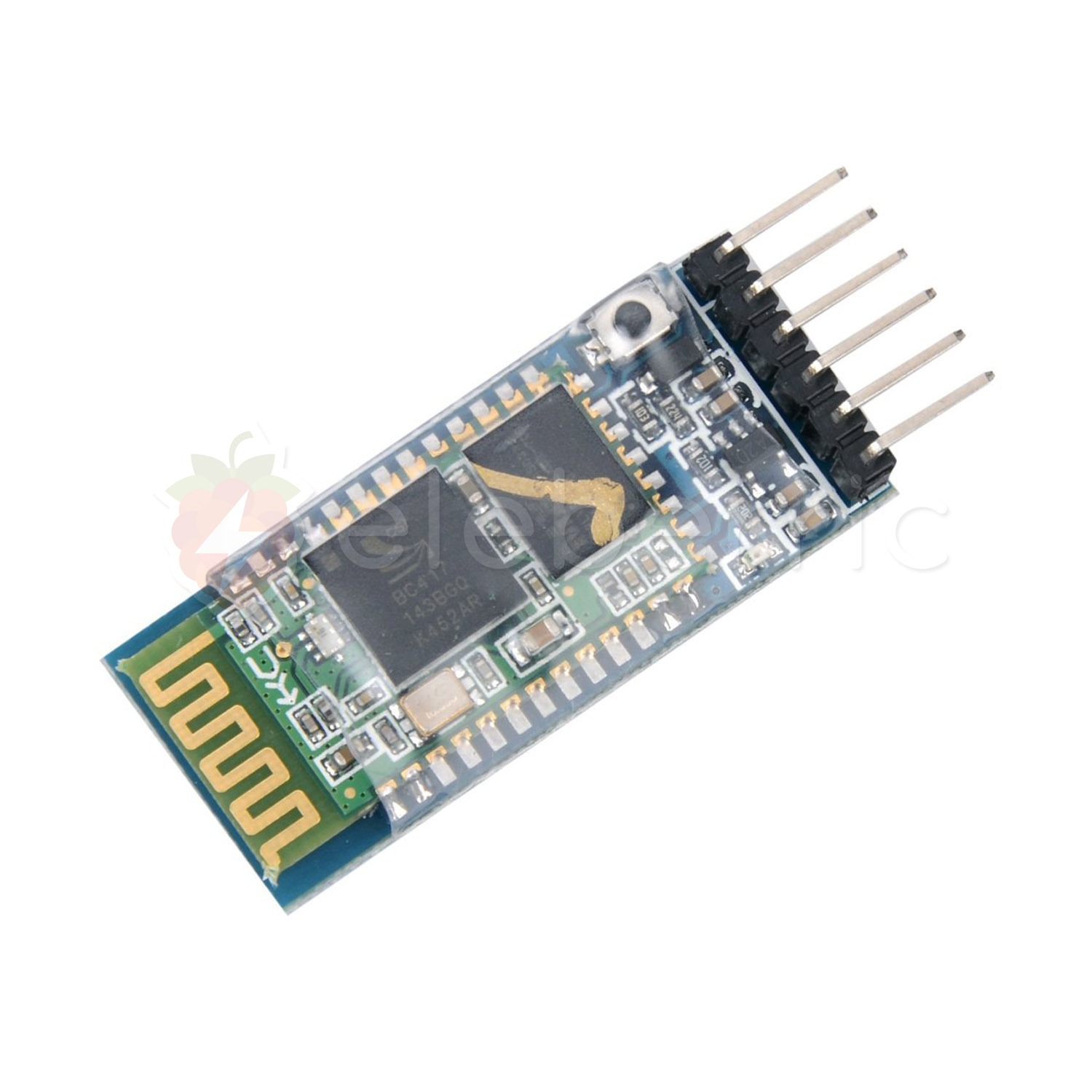

Bluetooth RF Transceiver Module HC-05 Full View 1

Bluetooth RF Transceiver Module HC-05 - View 1

Technical Specifications

Bluetooth Version: Bluetooth 2.0+EDR (Enhanced Data Rate)
Operating Voltage: 3.3V DC (50mA)
Communication Interface: Serial UART (Universal Asynchronous Receiver-Transmitter)
Operating Frequency: 2.4GHz ISM band
Range: Up to 10 meters (in open space)
Default Communication: Slave
Default Baud Rate: 9600 bps
Supported Baud Rate: 9600, 19200, 38400, 57600, 115200, 230400, 460800.
Supported Profiles: Bluetooth Serial Port Profile (SPP)
Emission Power: 4dBm, Class 2
Sensitivity: -84dBm at 0.1% BER
Speed: Asynchronous: 2.1 Mbps (Max) / 160 kbps, Synchronous: 1 Mbps/ 1 Mbps
Security: Authentication and encryption
Default Firmware: LINVOR
Dimensions: Approximately 26.9mm x 13mm x 2.2mm
Operating Temperature: -20°C to +75°C
