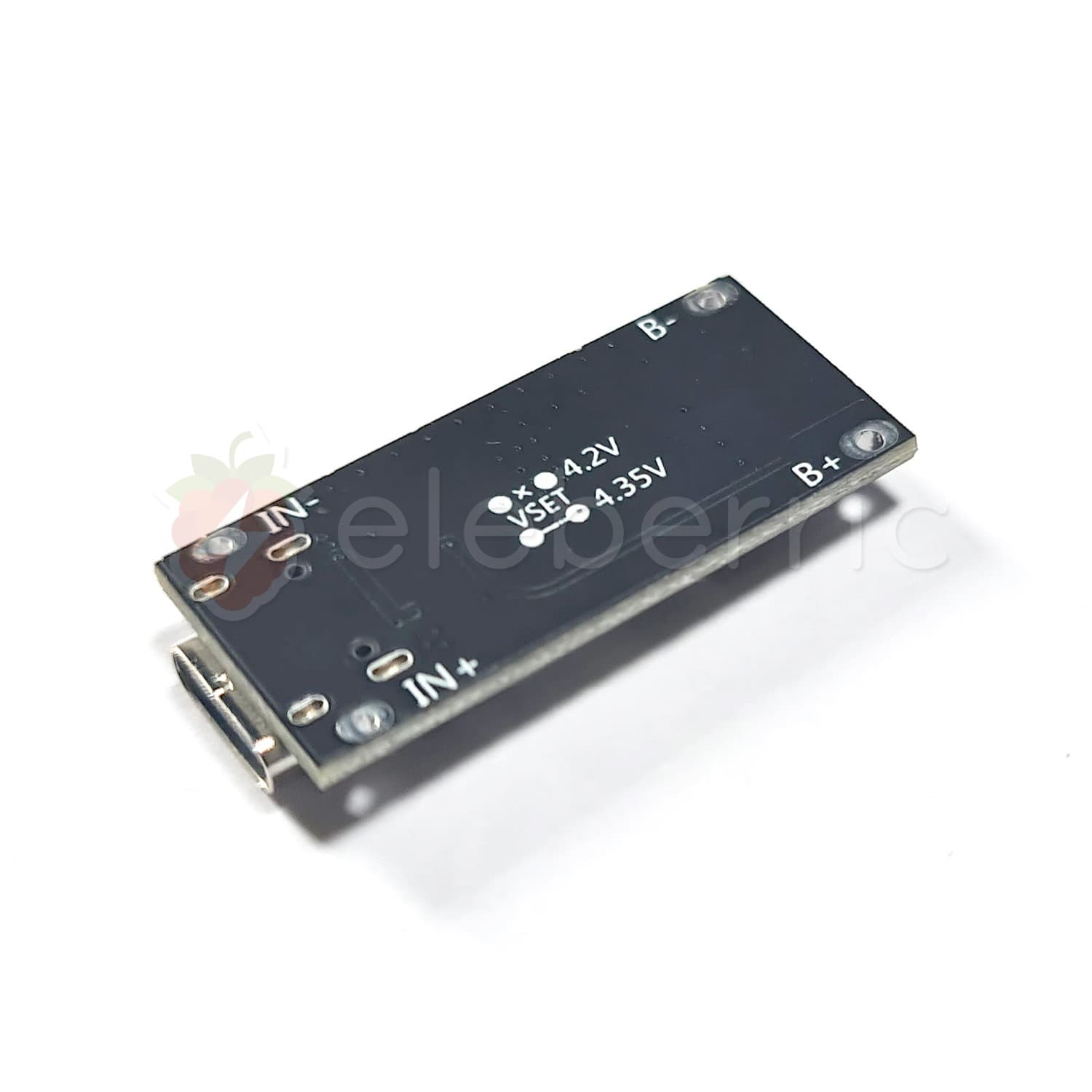

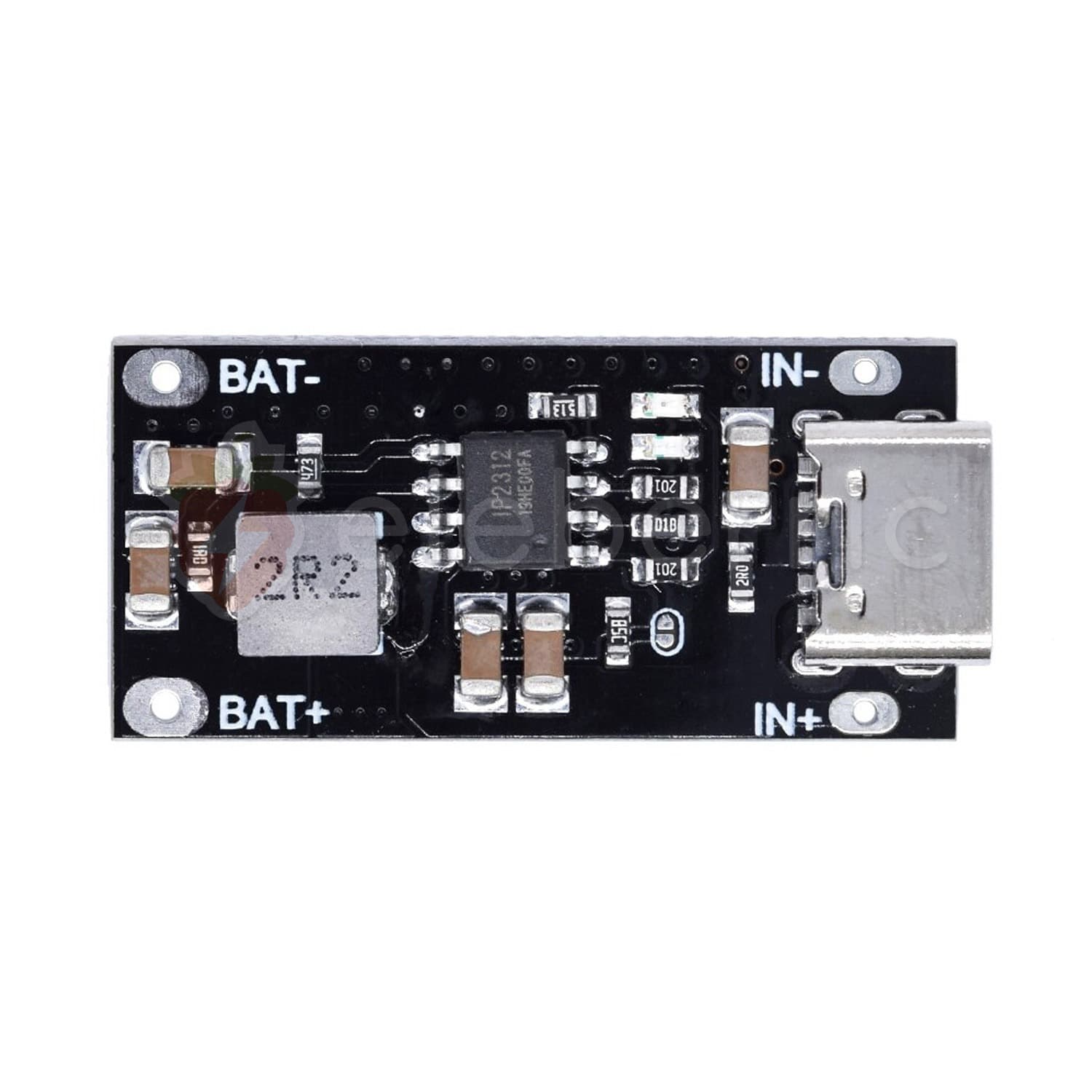

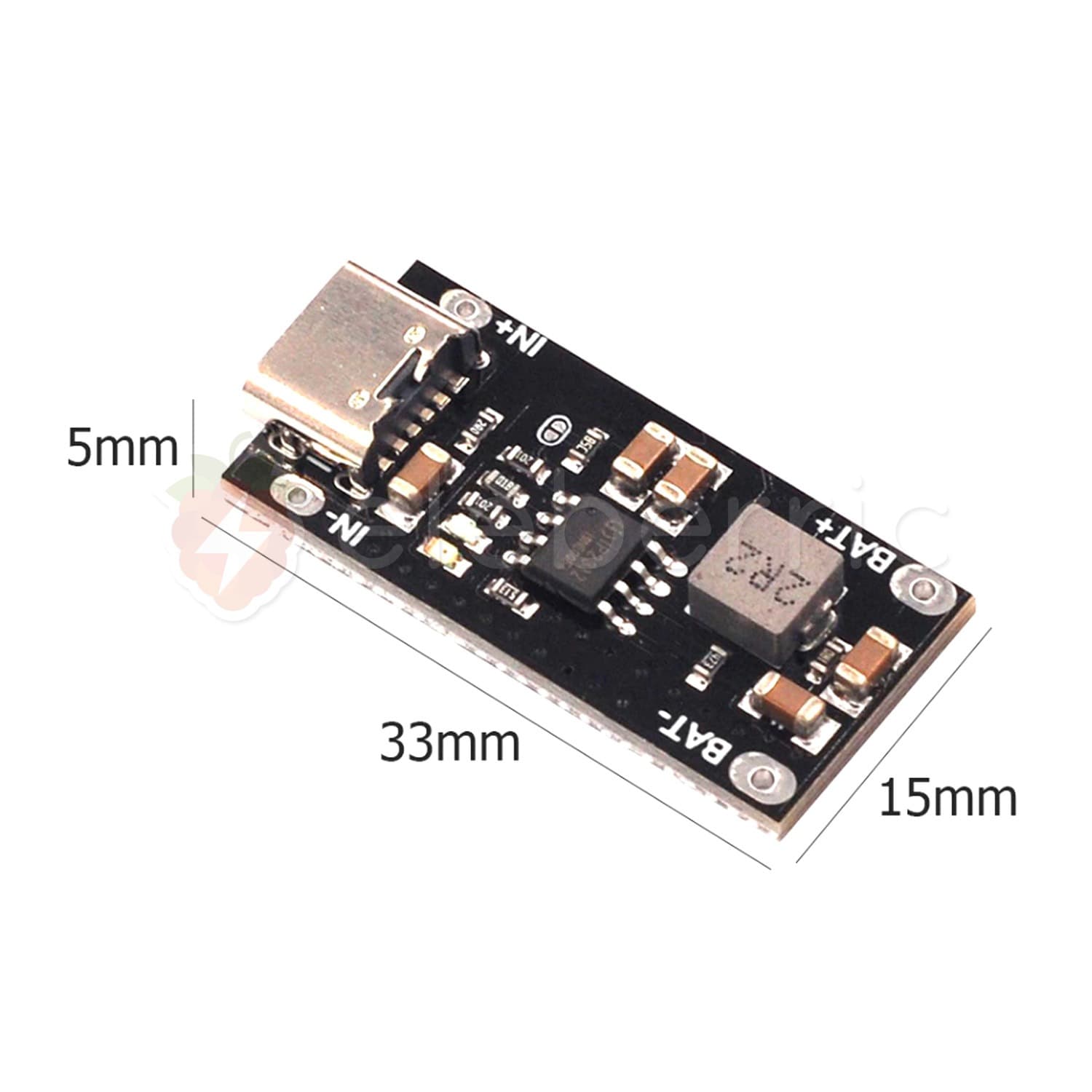

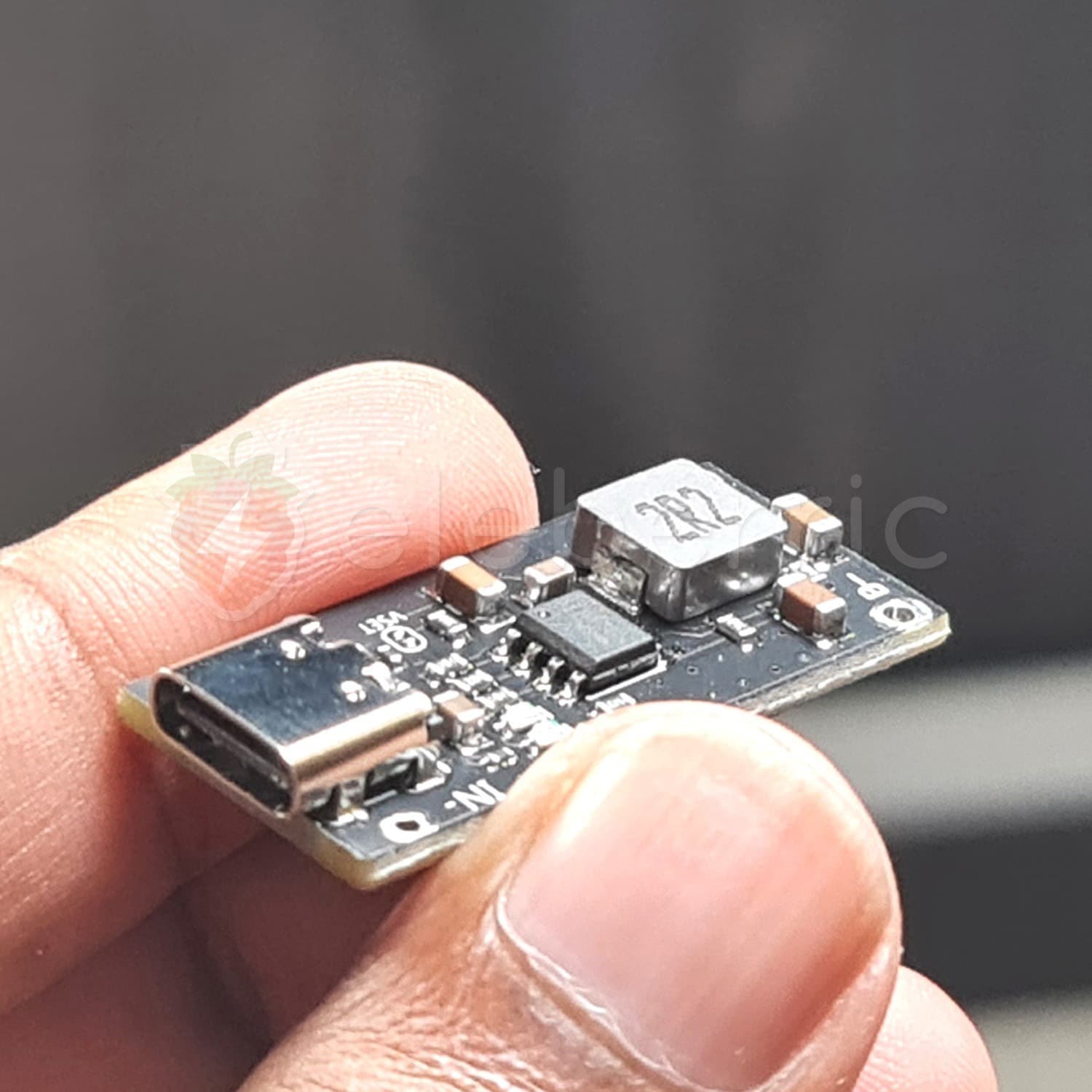

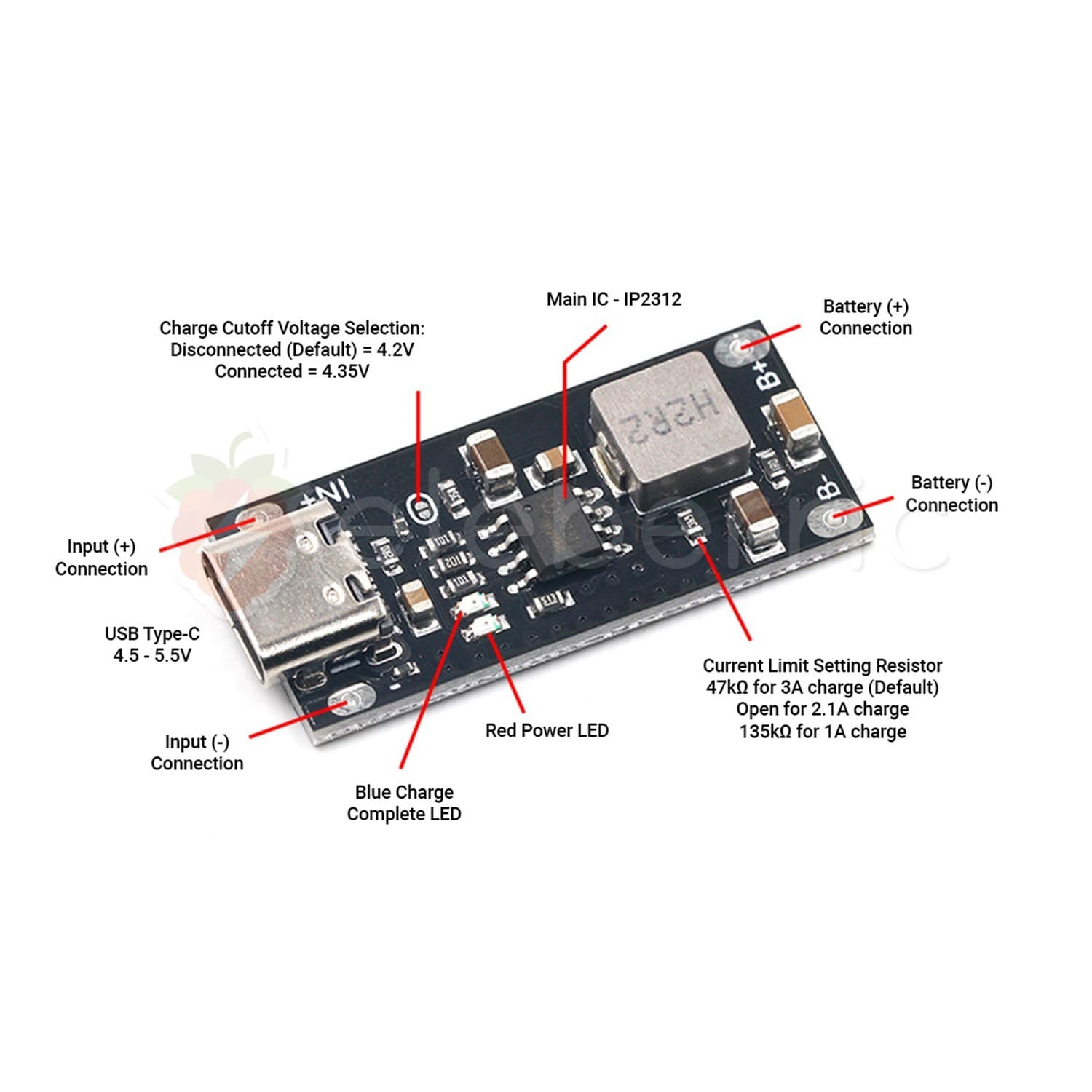

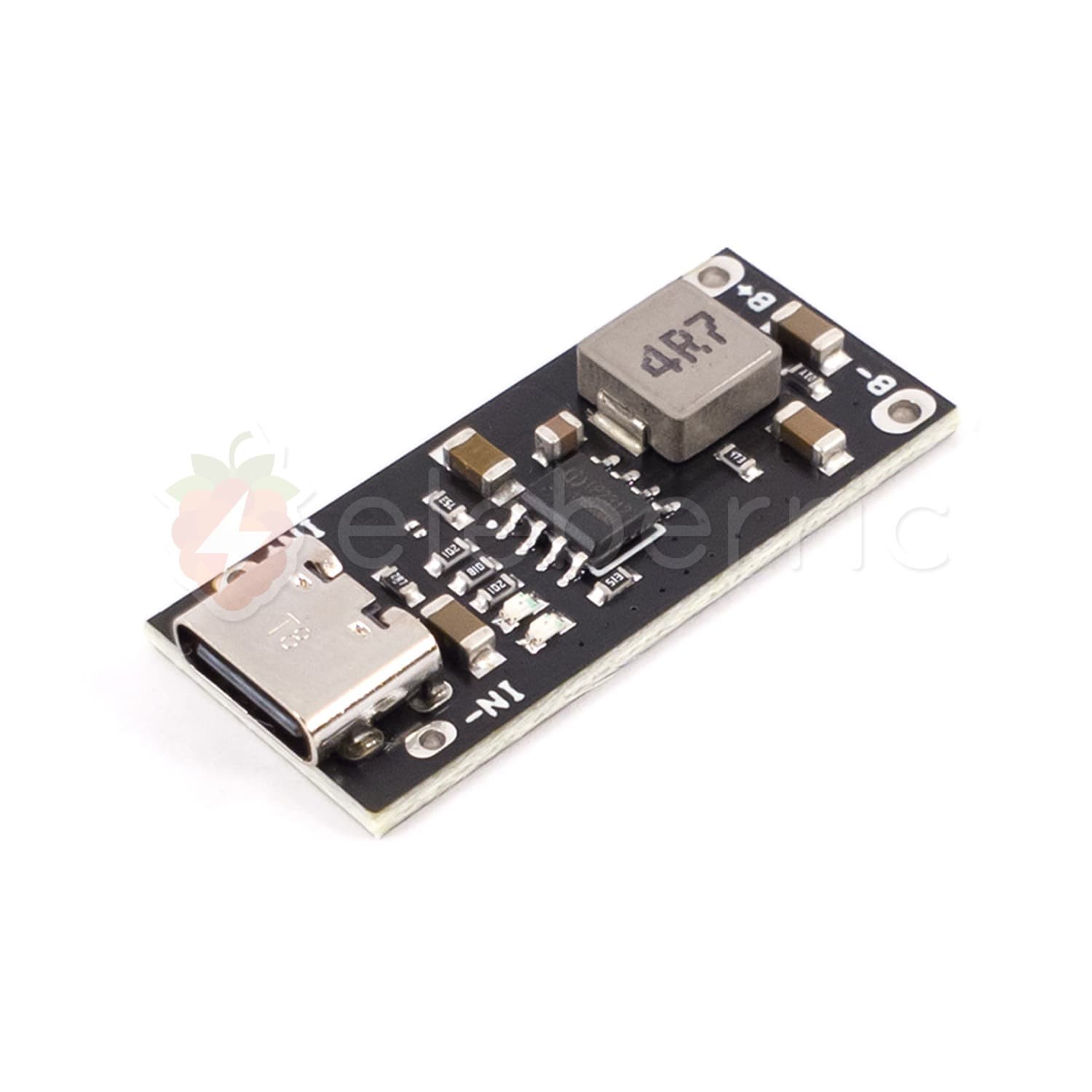

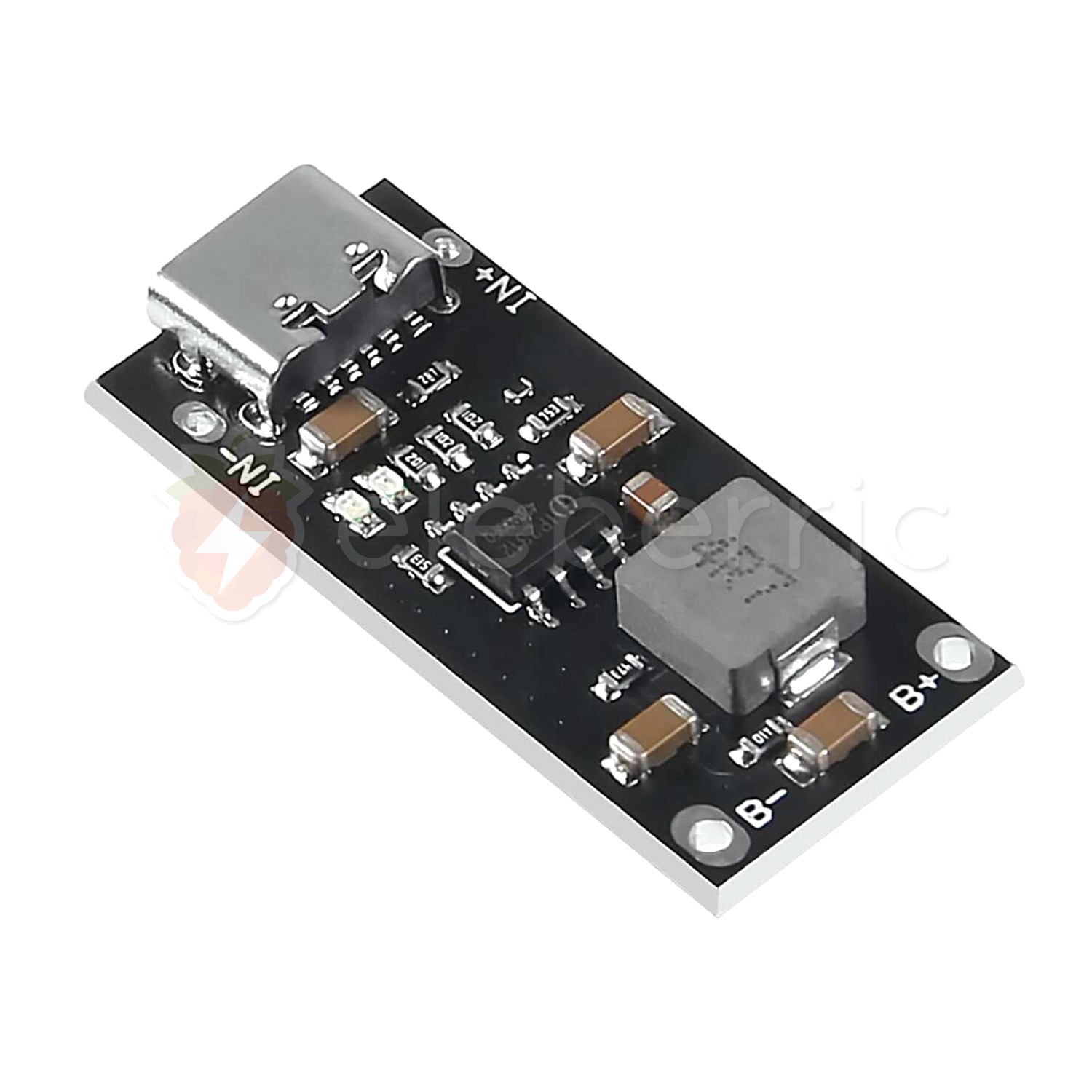

IP2312 Fast Charging 3A 5V to 4.2V Type-C Polymer Ternary Lithium Battery Module

The IP2312 Fast Charging Module is a high-efficiency lithium battery charging board designed for 3.7V lithium polymer and ternary lithium batteries. Using a USB Type-C input, this module delivers up to 3A charging current at a regulated 4.2V output. It’s ideal for portable power bank circuits, DIY battery packs, and embedded charging solutions.

At the heart of this module is the IP2312 charging IC, which features integrated fast-charge control, overvoltage protection, and intelligent current regulation. The module is designed to safely and quickly charge single-cell 3.7V lithium-ion or LiPo batteries, stopping at a full charge of 4.2V.

The USB-C interface allows it to work with common Type-C chargers or power banks. It also includes output solder pads that can directly connect to a load or protection circuit. The compact PCB size and built-in protection features make it ideal for compact DIY electronics, battery-powered projects, and rapid prototyping.

Order the IP2312 Type-C Lithium Battery Charging Module today from eleberric.com, Sri Lanka’s trusted source for DIY electronics and power management components.

Key Features:

• Supports fast charging for single-cell lithium batteries

• USB Type-C input for modern power sources

• 3A maximum current for rapid charging

• Onboard status LEDs for charge indication

• Compact size for embedded systems and portable projects

• Safe charging with integrated protection features

• Easy solder pads for battery and load connections

• High-efficiency and stable output with low ripple

Applications

• Portable battery-powered devices

• Power bank circuit development

• DIY energy storage systems

• Smart wearable and IoT projects

• Embedded lithium battery charging

• Educational and electronics prototyping

• Mobile device repair and replacement circuits
